Sherlock - Crown-Jewel-1 (Linux Env.) - English

/opt/chainsaw/chainsaw dump *.evtx --json > events.json

{"product":
	{
	"productID": 101,
	"productName": "Wireless Mouse",
	"dimensions": {
		"width": "2.5 inches",
		"height": "1.5 inches",
		"depth": "4 inches"
		}
	}
}

cat product.json | jq '.product.dimensions.depth'

cat product.json | jq '.product | .dimensions.depth'

Event 4 - File system volume mounted - 23
Event 9 - Volume status change - 25
Event 10 - File system error - 25
Event 142 - Error during NTFS operation - 35
Event 158 - Volume dismounted - 16
Event 159 - Volume mounted with errors - 2
Event 300 - File system repair started - 1
Event 301 - File system repair completed - 1
Event 302 - Volume failed integrity check - 1
Event 303 - NTFS metadata corruption - 1
Event 500 - NTFS driver error - 2

Event 521 - Logon attempt failed - 1
Event 1101 - Audit log cleared - 1
Event 4616 - Time zone change detected - 1
Event 4662 - Object access operation performed - 11
Event 4688 - New process created - 12
Event 4696 - Audit policy change - 1
Event 4698 - User account expiration set - 1
Event 4699 - User account expiration removed - 1
Event 4700 - Audit policy set - 1
Event 4701 - Audit policy removed - 2
Event 4702 - Account lockout policy set - 16
Event 4742 - Account logon restriction change - 1
Event 4768 - Kerberos authentication ticket requested - 9
Event 4769 - Kerberos service ticket requested - 17
Event 4799 - A security-enabled local group membership was enumerated - 21
Event 4826 - User rights assignment modified - 1
Event 5140 - Network share accessed - 4
Event 5142 - Network share permission change - 6
Event 5379 - Group membership change - 19

Event 1: System Boot - Occurs 1 time
Event 3: Application Error - Occurs 2 times
Event 6: Service Error - Occurs 11 times
Event 12: Network Error - Occurs 2 times
Event 14: Network Connection Error - Occurs 1 time
Event 15: File System Error - Occurs 1 time
Event 16: Hardware or Driver Error - Occurs 12 times
Event 18: Operating System Error - Occurs 1 time
Event 20: System Event Warning - Occurs 2 times
Event 24: Service Start Error - Occurs 1 time
Event 25: System Component Error - Occurs 1 time
Event 27: Configuration Error - Occurs 1 time
Event 32: Security Warning - Occurs 2 times
Event 41: Unexpected Shutdown - Occurs 1 time
Event 55: Disk/Filesystem Error - Occurs 8 times
Event 98: Network System Error - Occurs 2 times
Event 129: Disk Drive Error - Occurs 1 time
Event 139: Network Service Error - Occurs 1 time
Event 143: Port/Device Error - Occurs 1 time
Event 153: System Configuration Error - Occurs 1 time
Event 162: OS Warning - Occurs 1 time
Event 172: Critical System Error - Occurs 1 time
Event 238: Hardware Warning - Occurs 1 time
Event 1001: Application Start Error - Occurs 1 time
Event 1014: Network/DNS Issue - Occurs 2 times
Event 6005: Event Log Service Started - Occurs 1 time
Event 6008: Unexpected Shutdown - Occurs 1 time
Event 6009: System Boot Information - Occurs 1 time
Event 6013: Uptime Information - Occurs 1 time
Event 7001: Service Dependency Error - Occurs 1 time
Event 7026: Driver Load Error - Occurs 1 time
Event 7036: Service State Change - Occurs 106 times
Event 7040: Service Configuration Change - Occurs 1 time
Event 10016: COM Permission Error - Occurs 1 time
Event 10148: Device Error - Occurs 1 time
Event 10154: Network Service Error - Occurs 1 time
Event 14531: Network Management Error - Occurs 1 time
Event 14533: Network Communication Error - Occurs 1 time
Event 16962: Power Management Error - Occurs 1 time
Event 16977: Device Driver Warning - Occurs 2 times
Event 16983: Device Management Error - Occurs 1 time
Event 50036: OS Error - Occurs 2 times
Event 50103: System Configuration Error - Occurs 1 time
Event 51046: Service Start Issue - Occurs 1 time

Tasks

Task 1. Attackers can abuse the vssadmin utility to create volume shadow snapshots and then extract sensitive files like NTDS.dit to bypass security mechanisms. Identify the time when the Volume Shadow Copy service entered a running state.

• The events related to the services are located in SYSTEM.evtx, so we will search in our system.txt to see if any of the events are related to the state changes of a service.

• We see that the description of event 7036 says Service State Change, which seems to be the event we are looking for.

• Sice it occurs 106 times, we must filter by Volume Shadow Copy in the field that indicates the service name, which in this case is .EventData.param1. To do this, we run this command:

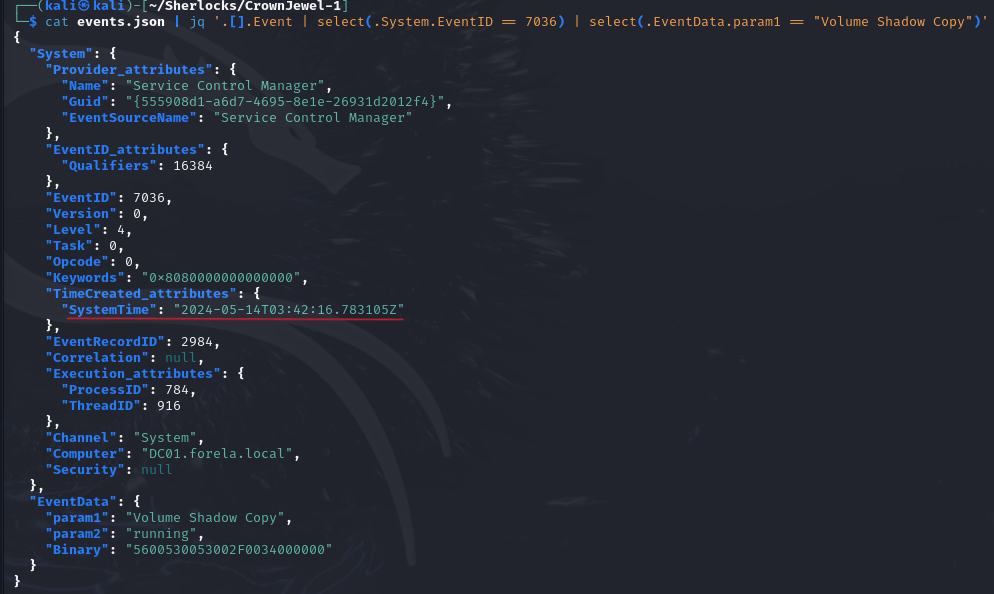

cat events.json | jq '.[].Event | select(.System.EventID == 7036) | select(.EventData.param1 == "Volume Shadow Copy")'

• As a result, we will obtain the event we are looking for. Our answer is in the field .System.TimeCreated_attributes.SystemTime.

Task 2. When a volume shadow snapshot is created, the Volume shadow copy service validates the privileges using the Machine account and enumerates User groups. Find the two user groups the volume shadow copy process queries and the machine account that did it.

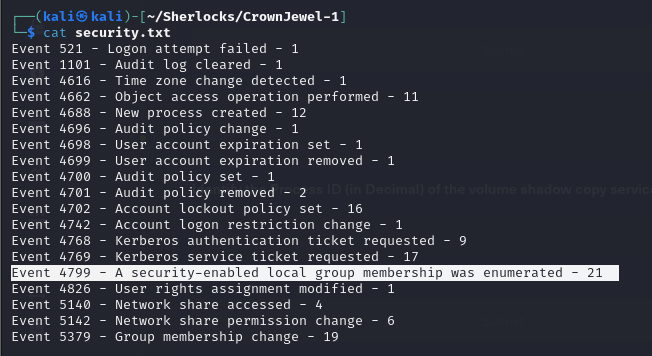

• The events related to security, such as privilege validation, can be found in SECURITY.evtx, so we will look in our security.txt.

• In this file we can see that event 4799 lists members of the local group. We will filter for that event when it is executed by the VSS process.

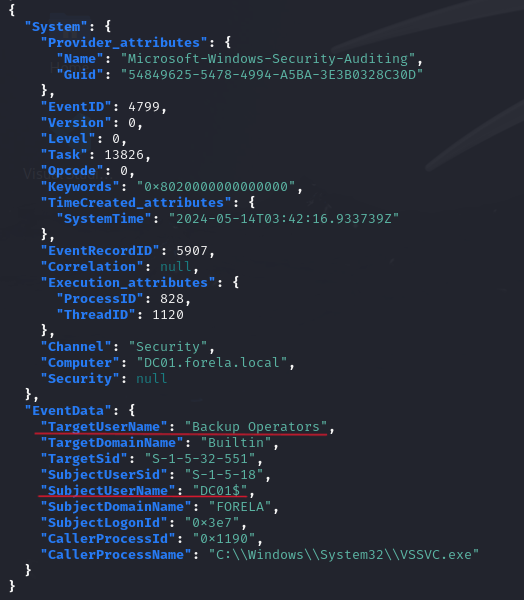

cat events.json | jq '.[].Event | select(.System.EventID == 4799) | select(.EventData.CallerProcessName == "C:\\Windows\\System32\\VSSVC.exe")'

• We find different groups listed in the .EventData.TargetUserName field and the machine account in .EventData.SubjectUserName.

• First, let’s go to the user groups. We can retrieve the values from the .EventData.TargetUserName field and remove duplicates:

cat events.json | jq '.[].Event | select(.System.EventID == 4799) | select(.EventData.CallerProcessName == "C:\\Windows\\System32\\VSSVC.exe") | .EventData.TargetUserName'|sort -u

• It returns the two groups we need: Administrators and Backup Operators. First part completed, now let’s move on to the second.

• Just like before, we can retrieve the values for the field EventData.SubjectUserName and remove duplicates:

cat events.json | jq '.[].Event | select(.System.EventID == 4799) | select(.EventData.CallerProcessName == "C:\\Windows\\System32\\VSSVC.exe") | .EventData.SubjectUserName'|sort -u

• The result it returns is DC01$. We now have the complete answer.

Task 3. Identify the Process ID (in Decimal) of the volume shadow copy service process.

• The number is in hexadecimal in the .EventData.CallerProcessId field for .EventData.CallerProcessName == C:\\Windows\\System32\\VSSVC.exe:

  • 0x1190

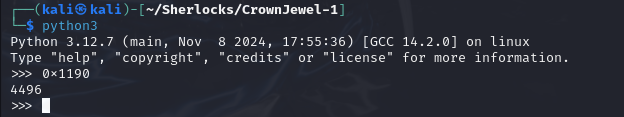

• We use python to convert that value into decimal:

python

• We paste the value and press enter. It will return us the Process ID in decimal.
  • 4496

Task 4. Find the assigned Volume ID/GUID value to the Shadow copy snapshot when it was mounted.

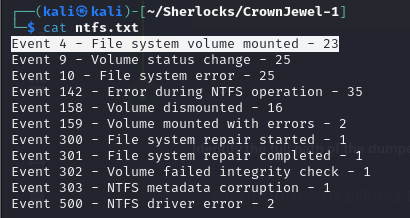

• The events related to files and volumes are located in NTFS.evtx, so we will check our ntfs.txt.

• The event 4 has the description File system volume mounted. We will filter by that EventID:

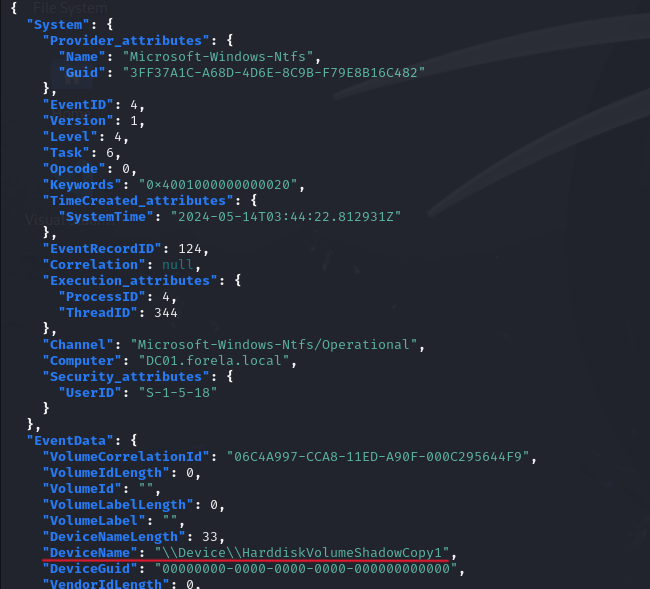

cat events.json | jq '.[].Event | select(.System.EventID == 4)'

• The command returns a series of events, and we can see that the last one is related to Volume Shadow Copy.

• To ensure that there are no more events with .EventData.DeviceName = "\\Device\\HarddiskVolumeShadowCopy1", we can retrieve the value of .EventData.VolumeCorrelationId for that DeviceName, which is the field they are asking about, and remove the duplicates.

cat events.json | jq '.[].Event | select(.EventData.DeviceName == "\\Device\\HarddiskVolumeShadowCopy1")| .EventData.VolumeCorrelationId' |sort -u

• This command will return a single VolumeCorrelationId confirming that it is the one we are looking for.

Task 5. Identify the full path of the dumped NTDS database on disk.

• The $MFT file acts as a database that contains information about all the files and directories on an NTFS partition. That is where we will find our answer.

• We need to convert this file to a format we can work with, so we will use Chainsaw again to create a JSON.

• First, we must move to C folder and rename the file to avoid usign the dollar symbol $:

mv $MFT mtf.bin

• Then we convert the file to JSON format using Chainsaw:

/opt/chainsaw/chainsaw dump mft.bin --json > files.json

• Now that we have a format which we can work with, we filter by ntds.dit:

cat files.json | grep -i ntds.dit

• We now know the name of the field where the full path is stored, .FullPath, so we will search for all entries that contain the text ntds.dit in that field:

cat files.json | jq '.[] | select(.FullPath | test("ntds.dit")) | .FullPath'

• Of all the paths, the most suspicious one is Users/Administrator/Documents/backup_sync_dc/ntds.dit for several reasons:

  1. At first glance, it doesn’t seem like a very secure location for a critical database like ntds.dit.
  2. It’s not the default location for the ntds.dit database; the default location is Windows/NTDS/ntds.dit.
  3. The name of the directory backup_sync_dc suggests that an attacker is trying to back up something related to the Domain Controller (DC).

• That is our answer.

Task 6. When was newly dumped ntds.dit created on disk?

• This information is stored in the field .StandardInfoCreated, and we can retrieve it with:

cat files.json | jq '.[] | select(.FullPath == "Users/Administrator/Documents/backup_sync_dc/ntds.dit") | .StandardInfoCreated'

Task 7. A registry hive was also dumped alongside the NTDS database. Which registry hive was dumped and what is its file size in bytes?

• The registry hives are usually files without an extension and can have names like SYSTEM, SECURITY, SAM…

• If a registry hive was dumped along with the NTDS database, it may be located in the same directory backup_sync_dc.

• We search for entries with that name, retrieving only the .FullPath to see if any file looks like a hive:

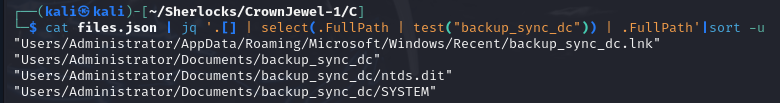

cat files.json | jq '.[] | select(.FullPath | test("backup_sync_dc")) | .FullPath'|sort -u

• Of all the results, the only one that looks like a hive is "Users/Administrator/Documents/backup_sync_dc/SYSTEM". We access the file to see its information:

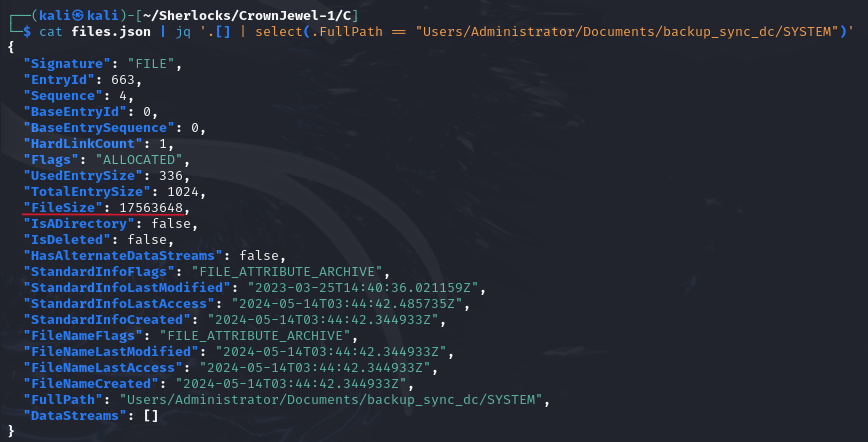

cat files.json | jq '.[] | select(.FullPath == "Users/Administrator/Documents/backup_sync_dc/SYSTEM")'

• The answer will be SYSTEM and the file size can be found in .FileSize.

That's it!
